July 20, 2017

LeakBreaker Water Heater Shut-Off

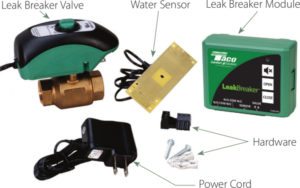

The Taco LeakBreaker is a water heater leak protection device that protects against flood damage from the containment failure of a water heater. It consists of a control unit, valve with actuator and sensor.

This resettable, testable protection device can be installed on any style water heater to shut-off the incoming water supply, preventing additional water flow to a damaged water heater. The multi-color LED light and audible alarm lets you know the status of LeakBreaker at all times.

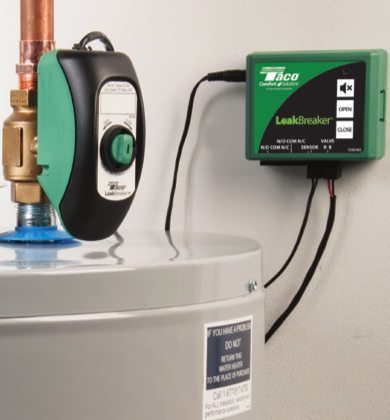

The Taco LeakBreaker is installed on the incoming cold water supply to the water heater, shutting off the water to a leaking water heater. The plumb-and-plug design is specifically engineered for use on a new or retrofit installation. Components are pre-wired to simplify the installation process, just plug in the sensor, valve, power supply and/or batteries. LeakBreaker can be tested anytime and then be reset to guard against a future leak.


  • Re-Settable
  • Testable
  • Quick Connect Wiring
  • Operates on Batteries or Power Supply
  • Multi-Color LED Status Light
  • Audible Alarm
  • Alarm Mute
  • 2 N/O; N/C Dry Contacts
  • Full Port Valve
  • Easy Removable Actuator

Performance Data

Maximum Operating Pressure: 140 PSI
Maximum Shut Off Pressure: 125 PSI
Maximum Static Pressure: 300 PSI
Maximum Ambient Temp: 135°
Water Temp.: 33°F to 220°F
Service: Potable Water

For a demonstration of how the LeakBreaker works, check out the below embedded video:

Finally, if you have any questions about this device, don’t hesitate to contact the experts at Duff Co. We have many other leak-prevention devices, for many other appliances.
